Brief Introductions:

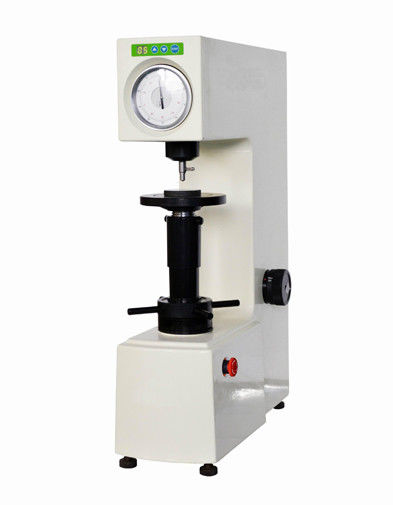

iRock-431M Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel.
It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.
Application Range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
|
 |
Technical Specifications
iRock-431M Technical Specifications:
|
Model
|
iRock-431M
|
|
Intial test force
|
10Kgf(98.07N)
|
|
Total Testing Force
|
60Kgf (588.4N), 100Kgf (980.7N), 150Kgf (1471N)
|
|
Indenter
|
Diamond Rockweel Indenter, 1.588mmBall Indenter
|
|
Loading Method
|
Automatic (Loading/Dwell/Unloading)
|
|
Hardness Reading
|
Dial Reading
|
|
Resolution
|
0.5HR
|
|
Dwell Time
|
2 - 60s
|
|
Max. Height of Specimen
|
175mm
|
|
Instrument Throat
|
165mm
|
|
Dimension (L*W*H)
|
520x215x700mm, Packing Dimension: 650x370x950mm
|
|
Gross/Net Weight
|
100/78Kg
|
|
Power Supply
|
AC220V /50Hz
|
|
Execute Standard
|
ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
|
iRock-431M Standard Delivery:
|
Instrument main body
|
1SET
|
Ø1.588mm ball indenter
|
1PC
|
Large Plane Test Table
|
1PC
|
|
Hardness block (60-70) HRC
|
1PC
|
Level
|
1PCS
|
V-shaped Test Table
|
1PC
|
|
Hardness block (20-30) HRC
|
1PC
|
Screw Driver
|
1PC
|
Diamond Rockwell Indenter
|
1PC
|
|
Hardness block (80-100) HRB
|
1PC
|
Power cable
|
1PC
|
Anti-dust Cover
|
1PC
|
|
Weight A, B, C
|
3PCS
|
Fuse 2A
|
2PCS
|
Middle Plane Test TAble
|
1PC
|
|
Horizontal Regulating Screw
|
4PCS
|
Spanner
|
1PC
|
Usage Instruction Manual
|
1 copy
|
|
